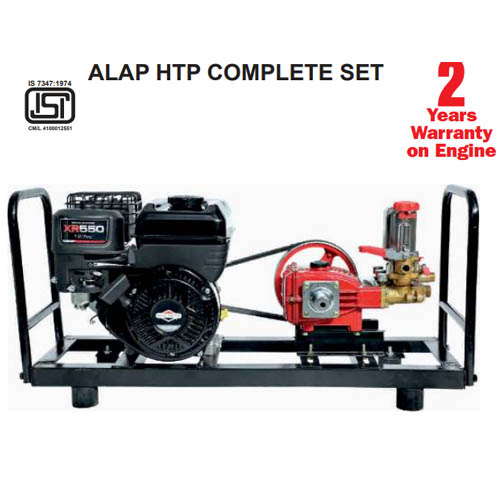

Alap HTP Complete Set | AHC – 22 / 30 |
MODEL : AHC - 22 / 30
TECHNICAL SPECIFICATION :
ENGINE : 3.5 HP @ 3600 RPM , 4-STROKE ENGINE OIL GRADE : 10 W 30 ENGINE RPM / KW : 3600 RPM / 2.61 KW ENGINE PULLEY SIZE : 2" FUEL CONSUMPTION : 800-1000 ML/HRS. APPROX HTP MODEL : 22 LTR. HTP OIL GRADE : 20 W 40 SUCTION HOSE LENGTH : 2.5 MTR. GUN LENGTH : 24" ( 2 FEET ) NET WEIGHT : 28.100 KG.
GT- SHAKTI Power Sprayer (Electric ) GT- E22B3-2 HP
Company Name :- GT- SHAKTI
MOdel Name: - GT-E22B3-2HP- Electric Motor Power : 2HP
- Phase : SINGLE
- Winding : COPPER
-
HTP SPRAY PUMP
- MODEL : 22B3
- BRASS GREASE CUPS
- BIG SIZE STAINLESS STEEL AIR CHAMBER
- HEAVY BASE
-
FREE ACCESSORIES
- 30 MTR DELIVERY HOSE PIPE (8.5) mm
- 60 CM GT-SHAKTI SPRAY PUMP
- SUCTION HOSE , STAINER ETC
Two In One Water Pump Set With Sprayer With 7HP Petrol
MODEL NAME: GT - 22B3 -2WS
COMPANY NAME : GT-SHAKTI
SPECIFICATIONS:
- MAX. VERTICAL RANGE OF SPRAY GUN (m) : - 10
- MAX VERTICAL RANGE OF DC WHEEL (m) : - 13 to 15
- MAX. FLOW RATE ( L/MIN) - 14 to 22
- WORKING PRESSURE (mpa) - 1.5 to 2.5
- MATCHED ALLOCATION : - DIRECTION CURRENT SPRAY GUN/ HIGH PRESSURE HOSE
- MATCHED POWER :- 168F-1
- PUMP HEAD SUCTION HEAD :- 23m ,7m
- PUMP INLET/ OUTLET DIA. - 2 inch
